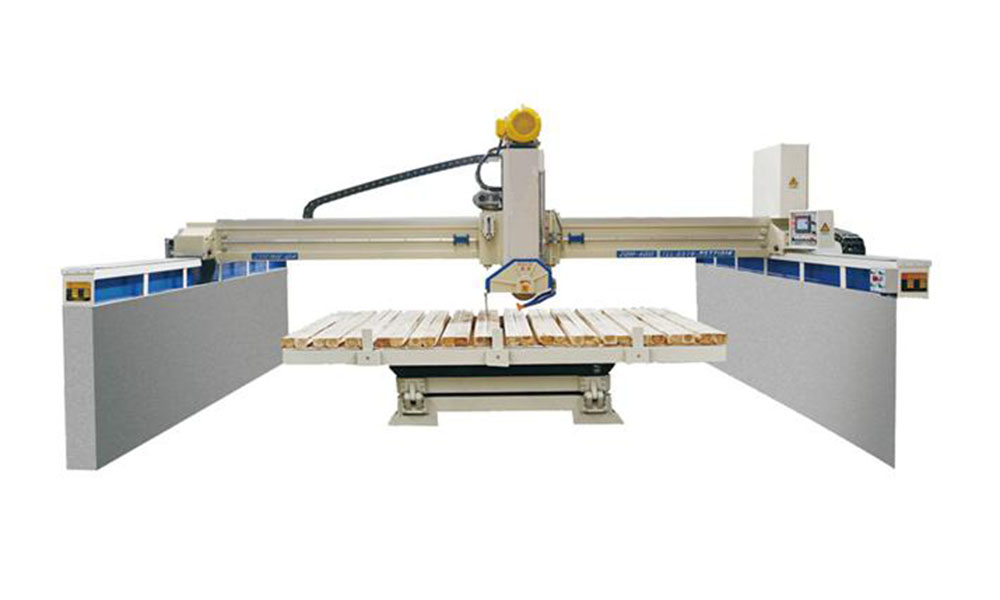

Infrared cutting machine is an efficient and energy-saving stone cutting equipment, which can achieve the purpose of precise cutting and efficient production. Easy to operate, excellent effect, is widely used in all kinds of marble, granite, quartz stone, PC brick, terrazzo and other stone processing.

Product type	Unit	HQ450A	HQ600A	HQ700A	HQ800A
Max.working dimensions(LxWxH)	mm	3200x2000x100	3200x2000x180	3200x2000x230	3200x2000x280
Max.diameter of blade	mm	Ф350-Ф450	Ф350-Ф600	Ф350-Ф700	Ф500-Ф800
Max.vertical stroke	mm	230	380	480	580
Table dimensions(LxW)	mm	3200x2000	3200x2000	3200x2000	3200x2000
Table tilting degree	n°	0-85	0-85	0-85	0-85
Table rotating degree	n°	0-90/360	0-90/360	0-90/360	0-90/360
Main motor power	kw	15	18.5	18.5	18.5
Totalpower	kw	21	24.5	24.5	24.5
Water consumption	m³/h	4	4	4.5	4.5
Overall dimensions(LxWxH)	mm	6000x4800x3000	6000x4800x3000	6000x4800x3400	6000x4800x3600
Weight	kg	5400	5600	5800	6000

Note: The product model with "A" at the end indicates a guide pillar type lifting guide rail, while the product model without "A" indicates a sliding plate type lifting guide rail; Conventional models do not come with additional codes; The additional code for the chamfered head type is D.

It adopts infrared knife cutting. The cutting speed is controlled by frequency conversion. using hydraulic transmission on head up and down, table turning, rotating and positioning The machine adopts PLC programmable control system and touch screen operation interface, assisted by high precision rotary encoder positioning.

The table is rotated by 90 degree principle, positioned by 360 degree mode, stable by 90 degree and 360 degree function. It is not affected by temperature difference in any area, and can be used stably to solve the problem of customer selection.

The machine has good rigidity, high working accuracy, stable operation and long service life.

This equipment is especially suitable for high value, large size plate and multi specification size cutting.
