Kerbstone Polishing Machine

Kerbstone Polishing Machine

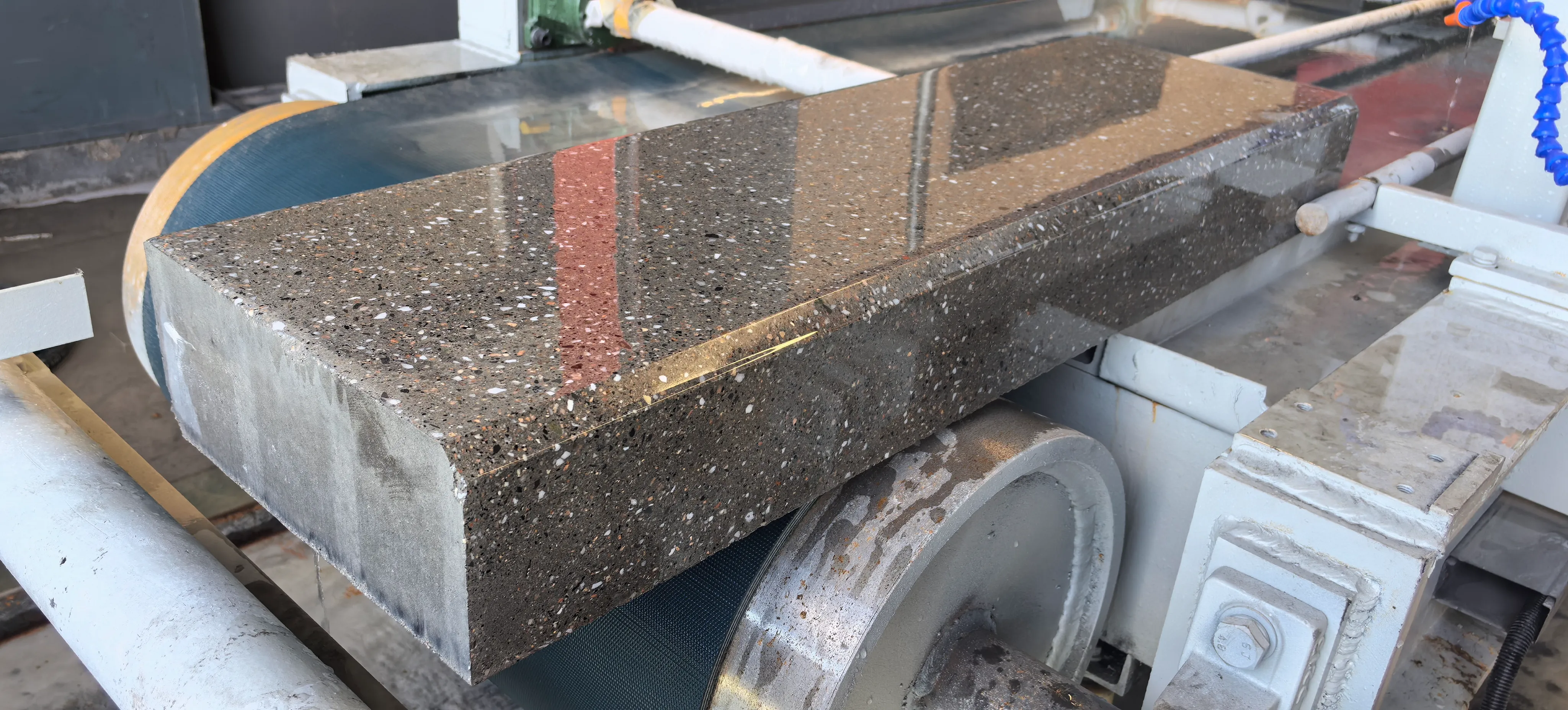

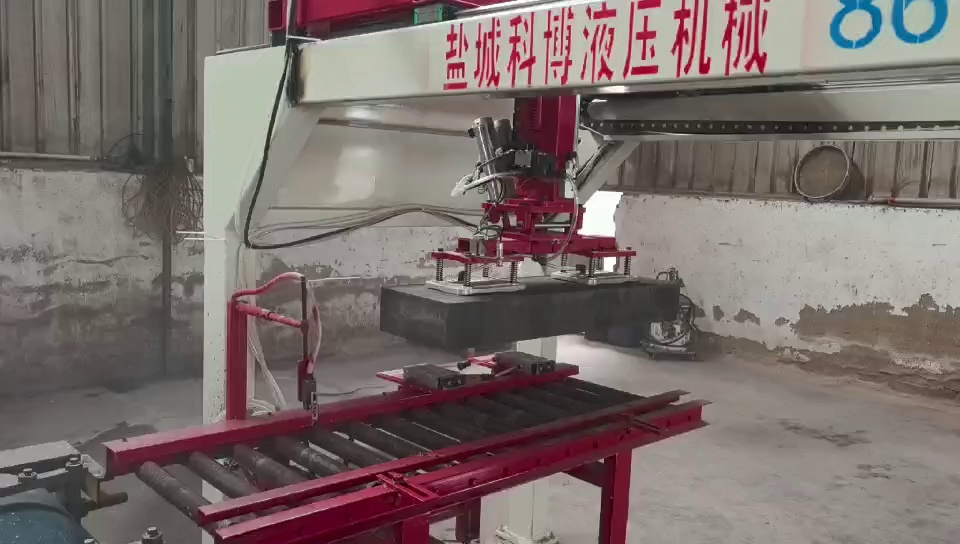

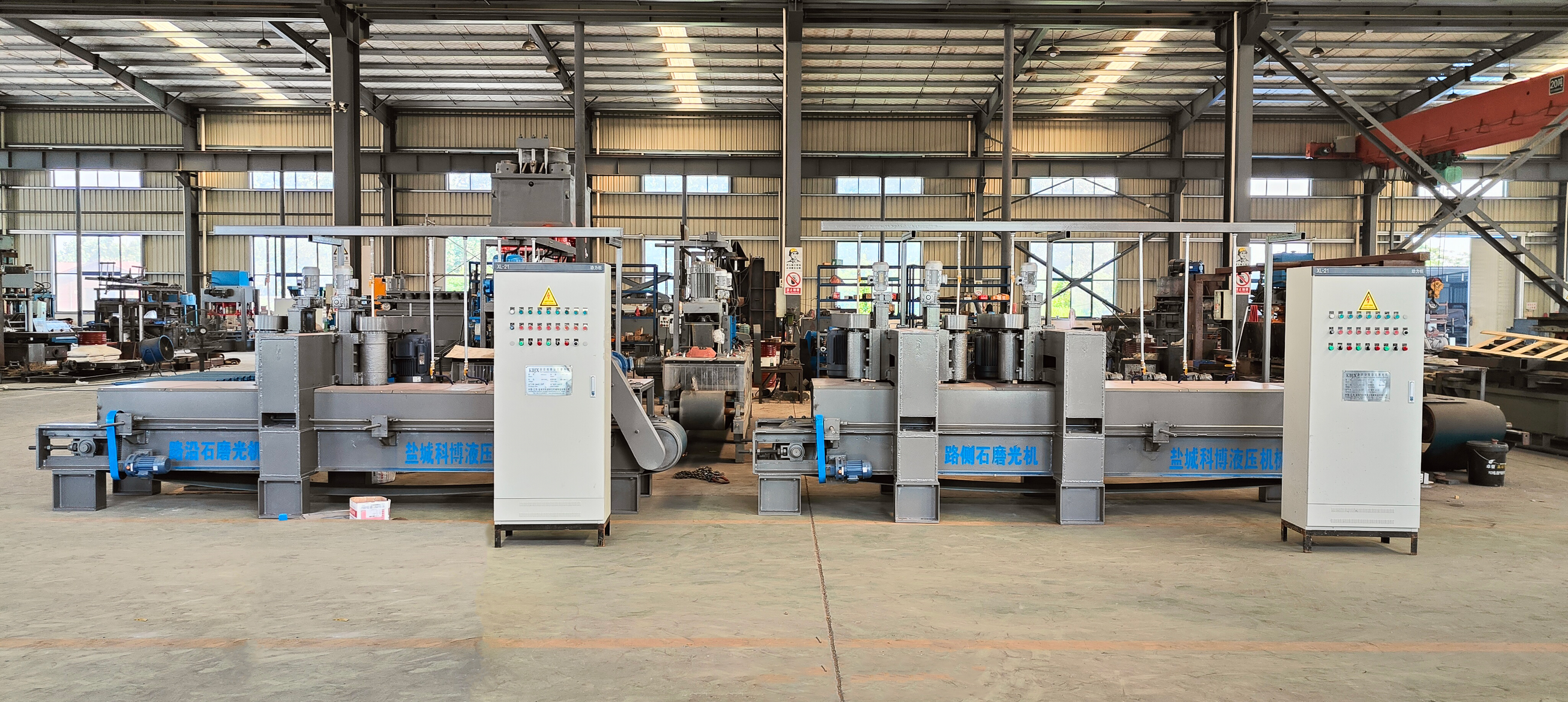

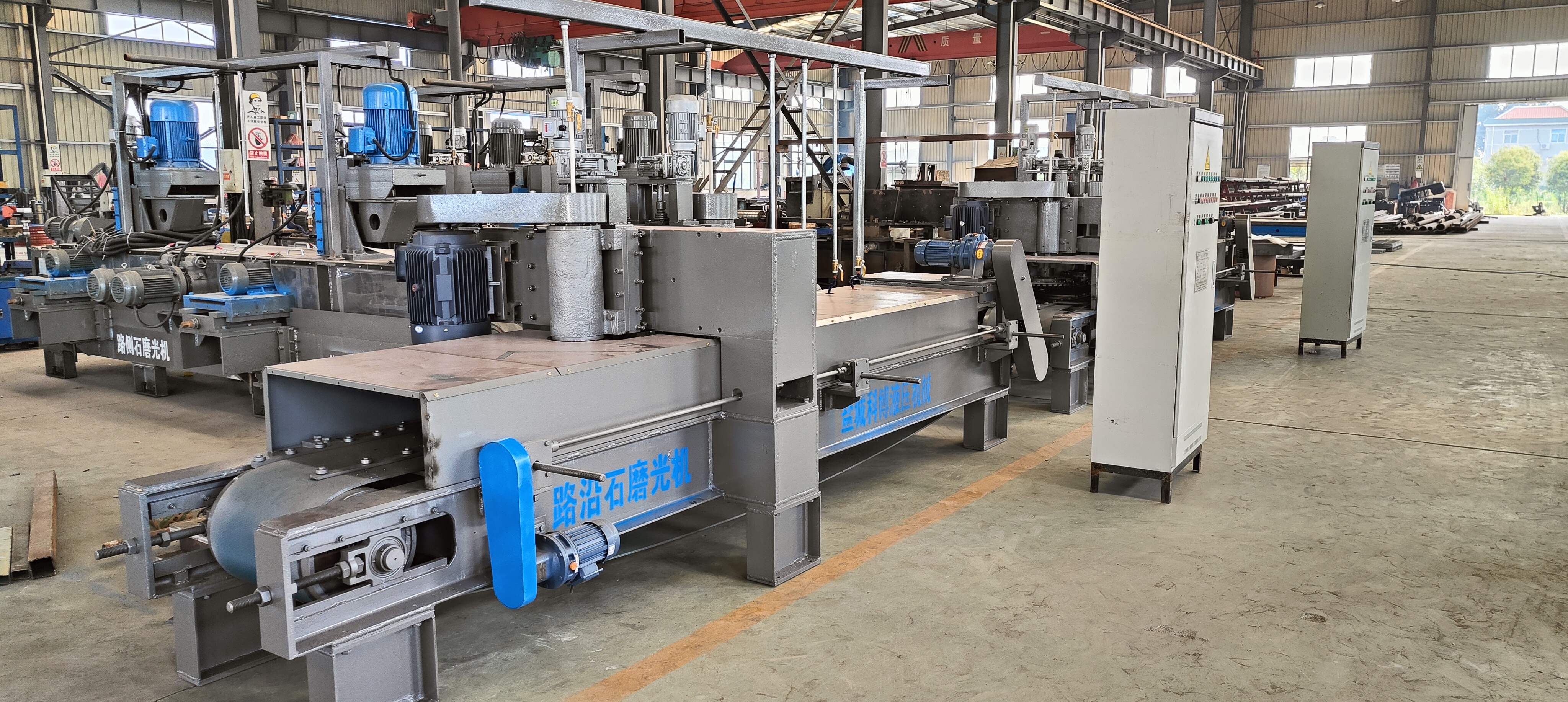

Kerbstone polishing machine used for polishing stone surface. By using different size grinding heads and pads, it can achieve the smooth treatment of different surfaces of kerbstone, so that it has a good luster and touch. Use air pressure controls the lifting and lowering of the grinder, and the magnitude of the pressurization pressure is adjustable: the swinging beam drives the grinder, and the movement speed is adjustable; the belt conveyor workbench, and the belt running speed is adjustable: the electrical system adopts PLC and human-machine interface.The machine has 23 polishing heads including 2 fixed thickness,8 flat grinding,8 side grinding,1 oblique cutting, 4 chamfer,high automation to easy to operate and good grinding effect, which plays an important role in improving the decorative effect of kerbstone.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Parameter

Kerbstone polishing machine used for polishing stone surface. By using different size grinding heads and pads, it can achieve the smooth treatment of different surfaces of kerbstone, so that it has a good luster and touch. Use air pressure controls the lifting and lowering of the grinder, and the magnitude of the pressurization pressure is adjustable: the swinging beam drives the grinder, and the movement speed is adjustable; the belt conveyor workbench, and the belt running speed is adjustable: the electrical system adopts PLC and human-machine interface.The machine has 23 polishing heads including 2 fixed thickness,8 flat grinding,8 side grinding,1 oblique cutting, 4 chamfer,high automation to easy to operate and good grinding effect, which plays an important role in improving the decorative effect of kerbstone.

Machining width

200-400mm

Number of grinding heads

23

Output

55-80s/pic

Weight

5T

Overall dimensions

10*2*2.5m
