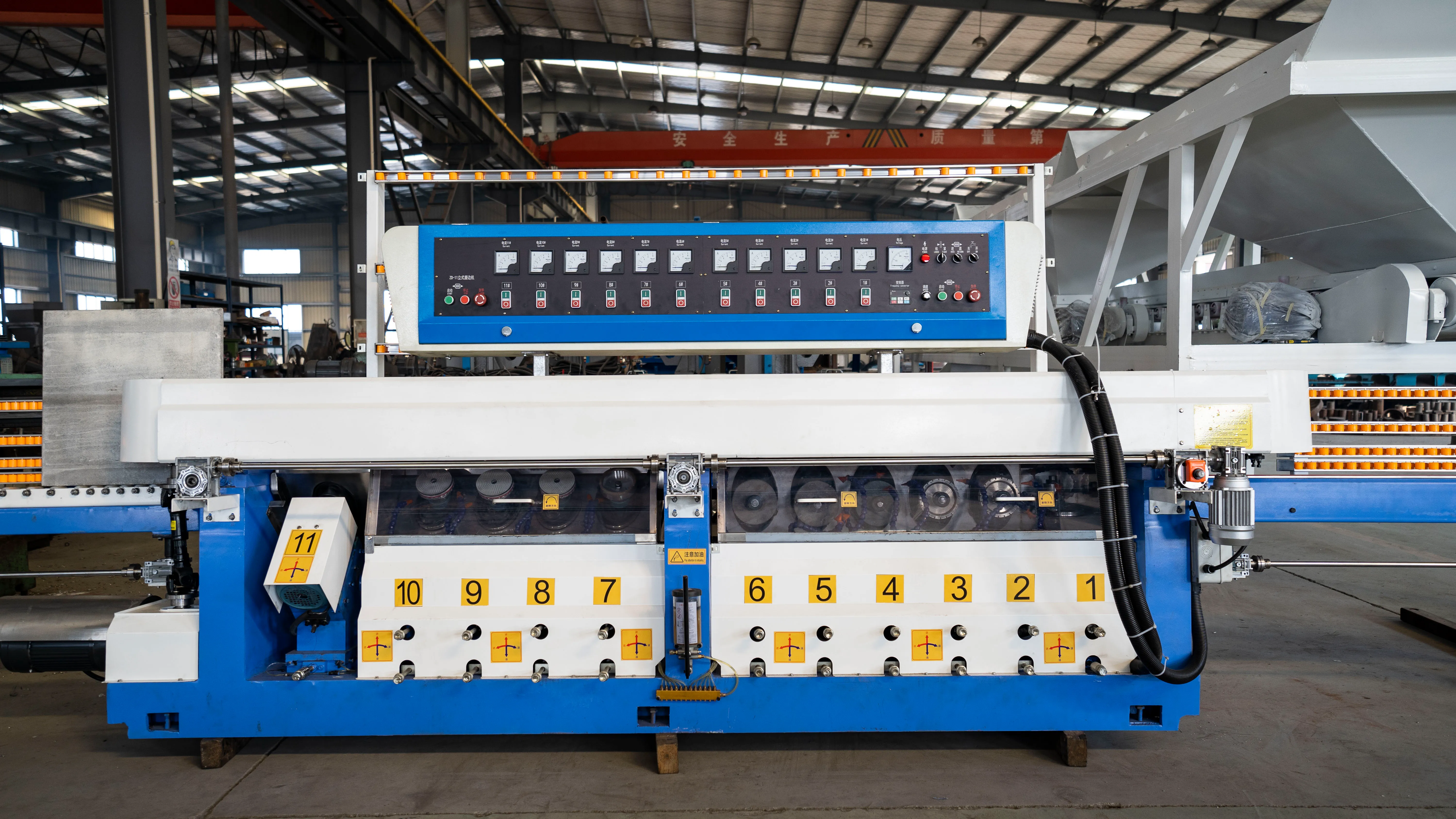

Stone edge chamfer grinding machine is a professional equipment specially designed for chamfering, rounding and polishing the edges of stone sheets. It uses a high-speed rotating grinding wheel to grind the edges of the stone in sequence, thereby quickly forming smooth and even chamfers or round edges. This equipment is widely used in the processing of countertops, stair steps, footprints and other products of stones such as marble, granite, artificial stone, etc., which can effectively improve the aesthetics, safety and added value of stone products. Its operation is simple and processing efficiency is high, and it is one of the indispensable key equipment for modern stone processing plants.
| Frame size | 4000*1349*2000 | |
| Overall size | 7600*1349*2000 | |
| Conveyor belt specifications | 200mm | |
| Polishing head | 8 | |
| Belt speed | 1.2m/s | |
| Weight | 2.3T | |
| Working width | 70-1200mm | |
| Polishing speed | 1.5-4m/min | |
